TST Precision Planetary Gear Reducer

MANUFACTURER DOCUMENTATION

Overview

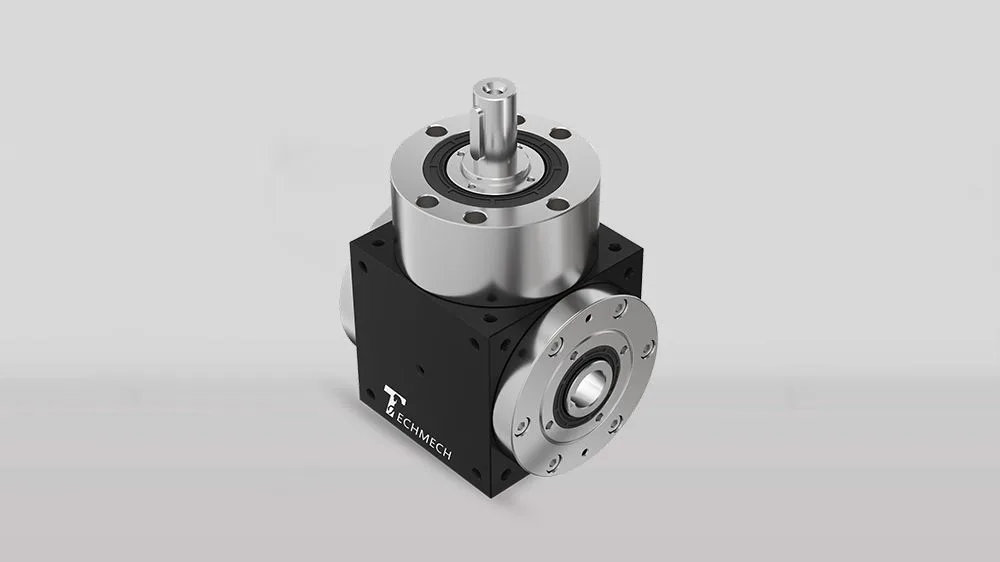

The TST is TECHMECH’s right-angle precision planetary series. The official product page identifies output sizes from 75 to 240 mm and lists direct ratios of 1, 2, 3, 4 and 5. A separate gear-reducer combination can extend the reduction to 500:1; that figure describes the combined arrangement, not every single TST unit. The maker describes precision-ground gearing, multiple machined mounting surfaces and installation in any orientation. Choose the output frame and combined or direct drive layout before checking backlash, service life and lubrication details in the current catalogue. A model drawing is needed for shaft and flange fit.

Read original manufacturer specification ↗

Save

Published series specifications

Series ranges describe the product family. They are not interchangeable operating points.

Output size

75–240 mm (series)

Direct ratios

1 / 2 / 3 / 4 / 5

Combined reduction

Up to 500:1 with an additional gear reducer

Combined backlash

≤4 arcmin with an additional gear reducer, as stated by maker

Mounting orientation

Any direction

Gear manufacture

Precision-ground gears

Model configuration table

The source page provides a series overview rather than a complete model/ratio rating table. Use the manufacturer link above for selection drawings and confirm the precise operating point before ordering.

Before you specify this gearbox

A planetary gearbox shares load across several planet gears. Confirm nominal and peak torque separately, together with ratio, input speed, backlash and mounting dimensions.

• Confirm continuous, peak and emergency-stop load limits separately.
• Match the motor flange, shaft, mounting orientation and lubrication requirements.
• Request the current drawing revision and selection calculation from the manufacturer.
