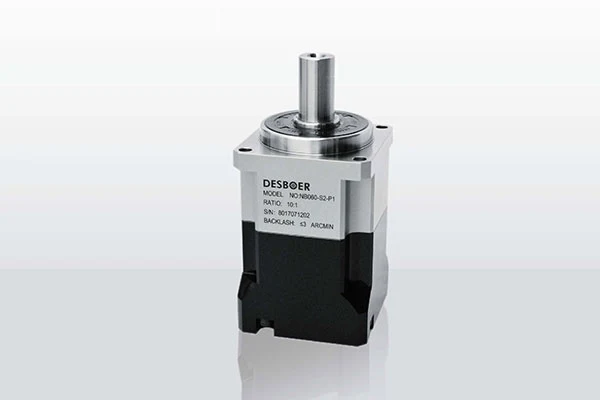

DESBOER / Nanpeng NB060 Precision Planetary Gearbox

MANUFACTURER DOCUMENTATION

Overview

NB060 is the inline planetary gearbox example documented from DESBOER’s official performance sheet. The table pairs single-stage ratios 3 through 10 with different rated output torques. The P1 precision grade is shown here with a maximum backlash of 3 arcmin; other precision grades and two-stage configurations have different limits. Rated input speed is 5,000 rpm for this frame. Maximum acceleration torque and emergency-stop torque are separate limits and must not replace the rated output torque when sizing continuous work. Confirm the motor adapter, output shaft loads and lubrication conditions against the manufacturer drawing.

Read original manufacturer specification ↗

Published series specifications

Series ranges describe the product family. They are not interchangeable operating points.

Selected frame: NB060
Documented single-stage ratios: 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
Rated torque by ratio: 50 / 45 / 55 / 50 / 45 / 40 / 35 / 35 Nm, respectively
Rated input speed: 5000 rpm
P1 backlash, single stage: ≤3 arcmin
Published single-stage efficiency: >97%
Protection: IP65
Operating temperature: −10 to +90 °C
Arrangement: Inline

Design & options

Inline planetary layout
P1 precision-grade ratings preserved
Synthetic-grease lubrication

Applications to discuss

Servo automation
Positioning machinery

Model configuration table

8 source-backed configurations. Torque is in Nm, input speed in rpm and backlash in arcmin. The note preserves the rating conditions and precision grade.

Model	Ratio	Rated torque Nm	Backlash arcmin	Rated input rpm	Mounting	Rating conditions	Source
NB060	3	50	3	5000	Not stated	Single stage, P1 precision grade; manufacturer rated output torque	Original ↗
NB060	4	45	3	5000	Not stated	Single stage, P1 precision grade; manufacturer rated output torque	Original ↗
NB060	5	55	3	5000	Not stated	Single stage, P1 precision grade; manufacturer rated output torque	Original ↗
NB060	6	50	3	5000	Not stated	Single stage, P1 precision grade; manufacturer rated output torque	Original ↗
NB060	7	45	3	5000	Not stated	Single stage, P1 precision grade; manufacturer rated output torque	Original ↗
NB060	8	40	3	5000	Not stated	Single stage, P1 precision grade; manufacturer rated output torque	Original ↗
NB060	9	35	3	5000	Not stated	Single stage, P1 precision grade; manufacturer rated output torque	Original ↗
NB060	10	35	3	5000	Not stated	Single stage, P1 precision grade; manufacturer rated output torque	Original ↗

Before you specify this gearbox

A planetary gearbox shares load across several planet gears. Confirm nominal and peak torque separately, together with ratio, input speed, backlash and mounting dimensions.

Confirm continuous, peak and emergency-stop load limits separately.
Match the motor flange, shaft, mounting orientation and lubrication requirements.
Request the current drawing revision and selection calculation from the manufacturer.

Source & attribution

http://www.desboer.cn/content/?213.html
Checked 2026-09-23. Image and catalog data: DESBOER / Nanpeng.
