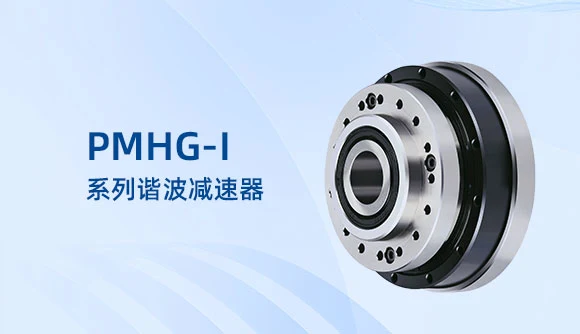

PMHG-I 20 Strain-Wave Reducer
PMHG-I 20 is documented here using the manufacturer’s frame-20 rating table. Rated torque is 33 Nm at ratio 50, 44 Nm at ratio 80 and 52 Nm at ratios 100, 120 and 160, all at 2,000 rpm input. The source separates these ratings from start-stop, average-load and momentary limits. Hollow assembled unit with supporting bearing describes the integration format; it does not make this unit interchangeable with another strain-wave assembly of the same ratio. Check the flange drawing, bearing loads, input connection and operating cycle before specifying a joint. Backlash values are converted from the original arcsecond figures only in the configuration table.
5 documented configurations · Manufacturer product imageView product family
