TIANYI High-Precision Helical Planetary Gearboxes

MANUFACTURER DOCUMENTATION

Overview

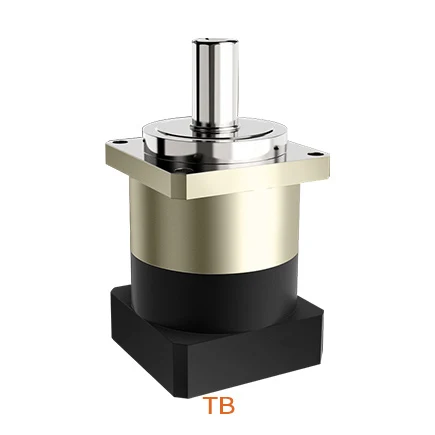

Tianyi’s high-precision planetary page describes helical planet and sun gears, an integrated carrier/output shaft and a clamping input connection. The catalog identifies SCM415/420 alloy steel and DIN6 gear accuracy. Its stated efficiency exceeds 97% for one stage and 94% for two stages. The family introduction advertises standard and customized backlash levels, but individual selector entries vary; the ordered frame and precision grade must therefore be checked explicitly. Use the official motor interface and rating sheet to establish torque, input speed and allowable bearing loads rather than applying a headline precision value to every size. The manufacturer image illustrates the TB variant within this family.

Read original manufacturer specification ↗

Published series specifications

Series ranges describe the product family. They are not interchangeable operating points.

Family: TA / TN / TD / TE / TS / TB
Gearing: Helical planetary
Gear material: SCM415/420 alloy steel, as stated by manufacturer
Gear accuracy: DIN6, manufacturer specification
Single / two-stage efficiency: >97% / >94%
Protection: IP65
Input coupling: Clamping connection
Backlash: Confirm selected frame, stages and precision grade

Design & options

Integrated housing and ring gear
Synthetic-grease lubrication
Motor connection plate and clamping input

Applications to discuss

Servo positioning
Robot control systems
Precision automation

Model configuration table

The source page provides a series overview rather than a complete model/ratio rating table. Use the manufacturer link above for selection drawings and confirm the precise operating point before ordering.

Before you specify this gearbox

A planetary gearbox shares load across several planet gears. Confirm nominal and peak torque separately, together with ratio, input speed, backlash and mounting dimensions.

Confirm continuous, peak and emergency-stop load limits separately.
Match the motor flange, shaft, mounting orientation and lubrication requirements.
Request the current drawing revision and selection calculation from the manufacturer.
