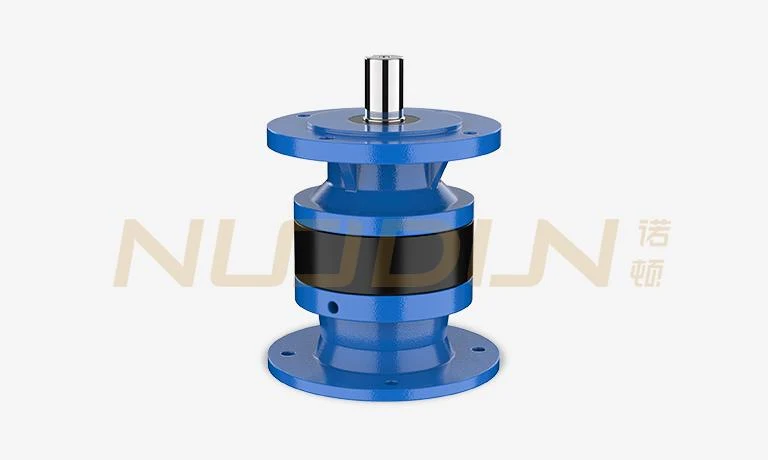

NUODUN NDP001 Coaxial Planetary Reducer

MANUFACTURER DOCUMENTATION

Overview

The NDP001 rating sheet is published within Nuodun’s ND-LDB5-AM80B5 product documentation. This page extracts the one-stage NDP001L1 configurations at 1,400 rpm input. Actual ratios differ from the nominal selection labels: for example, the nominal 3.55 entry is listed as 3.577 actual ratio, with 125 Nm output torque and 391 rpm output speed. The sheet also gives a 3 kW thermal-power value for the one-stage group. Thermal capacity and mechanical torque are different checks. The configurations here retain the actual ratios; confirm the motor interface, bearing loads and thermal operating conditions with the manufacturer.

Read original manufacturer specification ↗

Published series specifications

Series ranges describe the product family. They are not interchangeable operating points.

Selected frame / stages: NDP001L1 / one stage
Rated input speed: 1,400 rpm
Actual ratios: 3.577 / 4.941 / 5.786 / 7.091 / 9.375
Output torques: 125 / 110 / 105 / 75 / 50 Nm, respectively
Output speeds: 391 / 283 / 242 / 197 / 149 rpm, respectively
Listed thermal power Pt: 3 kW; confirm thermal conditions
IEC motor interfaces in table: 56 / 63 / 71 / 80

Design & options

Coaxial planetary layout
Actual and nominal ratios stated separately
Thermal power is distinct from mechanical torque

Applications to discuss

Industrial reduction drives
Material handling

Model configuration table

5 source-backed configurations. Torque is in Nm, input speed in rpm and backlash in arcmin. The note preserves the rating conditions and precision grade.

Model	Ratio	Rated torque Nm	Backlash arcmin	Rated input rpm	Mounting	Rating conditions	Source
NDP001L1	3.577	125	Not stated	1400	Not stated	Actual ratio; nominal 3.55; catalog rated table at 1,400 rpm input	Original ↗
NDP001L1	4.941	110	Not stated	1400	Not stated	Actual ratio; nominal 5; catalog rated table at 1,400 rpm input	Original ↗
NDP001L1	5.786	105	Not stated	1400	Not stated	Actual ratio; nominal 5.6; catalog rated table at 1,400 rpm input	Original ↗
NDP001L1	7.091	75	Not stated	1400	Not stated	Actual ratio; nominal 7.1; catalog rated table at 1,400 rpm input	Original ↗
NDP001L1	9.375	50	Not stated	1400	Not stated	Actual ratio; nominal 9; catalog rated table at 1,400 rpm input	Original ↗

Before you specify this gearbox

A planetary gearbox shares load across several planet gears. Confirm nominal and peak torque separately, together with ratio, input speed, backlash and mounting dimensions.

Confirm continuous, peak and emergency-stop load limits separately.
Match the motor flange, shaft, mounting orientation and lubrication requirements.
Request the current drawing revision and selection calculation from the manufacturer.
