RX Single-Stage Helical Gear Units

MANUFACTURER DOCUMENTATION

Overview

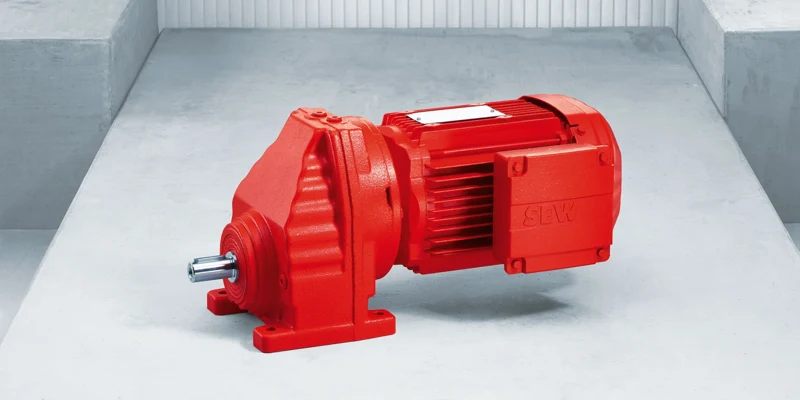

Single-stage RX helical gear units in six sizes. The low-ratio range is suited to higher output speeds. Published maximum torque is a frame-dependent envelope, not the rating of every size.

Read original manufacturer specification ↗

Save

Published series specifications

Series ranges describe the product family. They are not interchangeable operating points.

Sizes

57 / 67 / 77 / 87 / 97 / 107

Ratio range

1.30–8.65

Maximum output torque envelope

69–830 Nm

Motor power via AM adapter

0.12–45 kW

Mounting

Foot or flange

Stages

Single stage

Model configuration table

The source page provides a series overview rather than a complete model/ratio rating table. Use the manufacturer link above for selection drawings and confirm the precise operating point before ordering.

Before you specify this gearbox

Helical gearboxes are used in a broad range of industrial drives. Mounting position, service factor, thermal capacity and lubrication are part of selection, not just the nameplate power.

• Confirm continuous, peak and emergency-stop load limits separately.
• Match the motor flange, shaft, mounting orientation and lubrication requirements.
• Request the current drawing revision and selection calculation from the manufacturer.
