SEW-EURODRIVE Tianjin
Specify the complete configured drive.

SEW-EURODRIVE's China directory identifies its Tianjin transmission-equipment company and local sales offices. Its modular helical range separates RX single-stage units, R multi-stage units and RM agitator variants. Use the selected configuration's drawing, duty calculation and documentation to define the order and its service requirements.

Compare RX, R and RM Prepare a configured enquiry →

Separate variants in the official R-family page

Stage count and output support change the selection.

The ranges below are family envelopes from SEW's product page. Confirm the exact unit's torque, actual ratio, input arrangement and duty; maxima in different columns do not form one configuration.

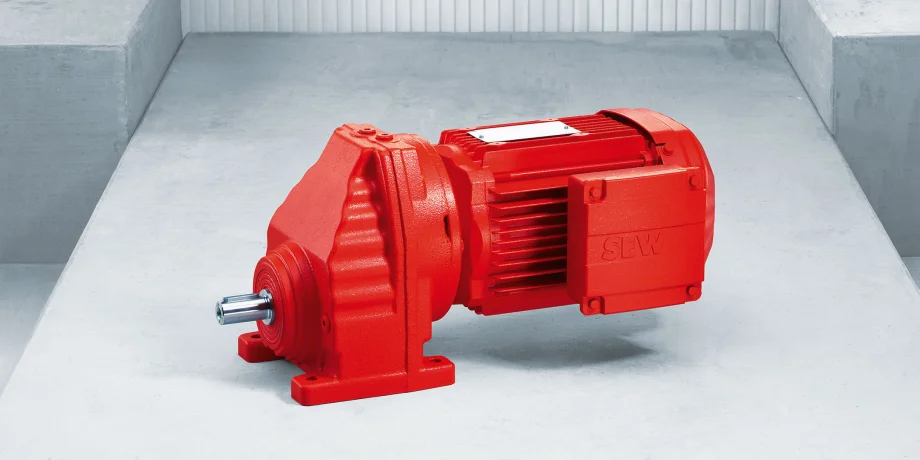

Official RX single-stage image.

RX · single-stage, higher output-speed route

Six sizes: 57 / 67 / 77 / 87 / 97 / 107. The official page lists foot or flange mounting, ratios 1.30–8.65, maximum-output-torque values spanning 69–830 Nm and motor power 0.12–45 kW with an AM motor adapter.

The supplier names roller, belt and chain conveyors. Provide driven geometry and forces along with torque and speed, and specify the selected motor connection rather than treating the adapter power range as every motor option.

Existing RX directory specifications →

R · two and three stages

Published size count: 15
Ratio range: 3.21–289.74
Double gear-unit ratio: 90–27,001
Output-torque range: 50–20,000 Nm
Power with AM adapter: 0.12–90 kW

The page also offers reduced-backlash variants. Define the needed precision and accepted configuration rather than assigning one backlash grade to all R gear units.

RM · extended output bearing hub

Published size count: 10
Ratio range: 4.29–289.74
Double gear-unit ratio: 134–27,001
Output-torque range: 450–20,000 Nm
Power with AM adapter: 0.12–160 kW

SEW describes RM specifically for agitators, with an extended output bearing hub to address overhung/axial loads and bending moments. The selected bearing arrangement and life still require the actual force diagram.

Application-led architecture

An agitator's support problem is different from a conveyor's.

For a mixer, send vessel geometry, shaft length, impeller location, material state and the torque/load cycle. Include radial/axial forces and bending moment at the gearbox reference. Ask whether the selected RM support arrangement fits the machine or whether additional support is needed.

For a conveyor, provide pulley/sprocket diameter, belt/chain forces, overhang, supported shaft arrangement, starts and jams. Select RX or R against output speed, torque and the bearing load—not solely the motor power.

The official range also allows modular combinations with AC or servo motors. Specify motor and control requirements, starting/stopping behaviour, brake/feedback scope and environment as part of the complete drive.

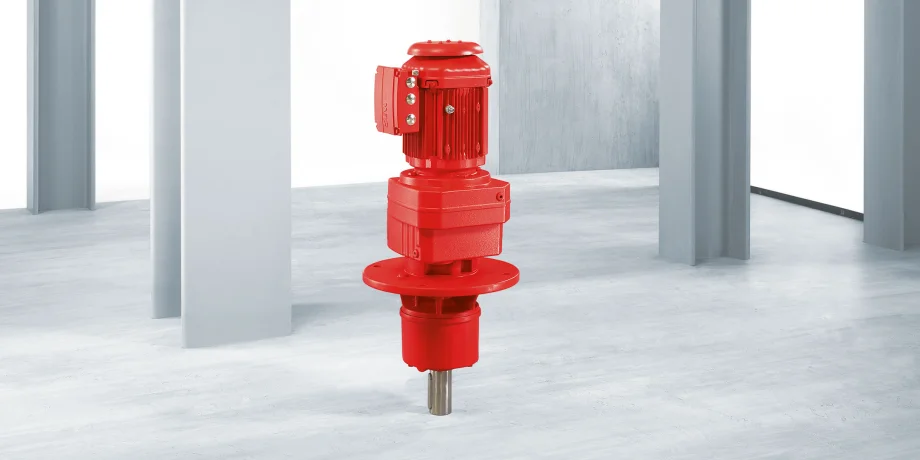

Official RM image: extended output support for the agitator route.

Make the configuration file part of the purchase.

SEW's official product page provides a configuration route and CAD/documentation for the individual product. Keep that specific configuration linked to the quotation and drawing revision.

Selection

Duty and configuration

Required speed/torque cycle, starts, ambient, external loads, life and installation position. Request the configured model and the supporting selection checks.

Integration

CAD and interfaces

Mounting holes, pilot, shaft/flange geometry, motor adapter, installation envelope and maintenance access. Agree lubrication, breather and seal arrangement for the position.

Delivery

Traceable documentation

Order/configuration identity, supplying and manufacturing locations, nameplate/serial, inspection requirements, operating instructions and agreed spare-parts/service scope.

Open SEW's official configuration route ↗

Existing installation

Use the original drive identity for replacement and support.

Send a readable nameplate, serial/order information, current motor/control details and machine drawing. Describe why the drive is being replaced: wear, changed output duty, overheating, noise or a changed process.

Same envelope, different duty?

Compare the full designation, actual ratio, mounting position, output interfaces and motor options. A matching nominal size or motor power alone does not establish interchangeability.

Identify the load behind a failure

Record operating cycle, temperature, lubrication history and abnormal loads. Check the machine supports and alignment before specifying a like-for-like replacement.

Agree the service boundary

Ask the relevant China contact for the applicable spares, inspection, repair or replacement route. Confirm responsibilities, documentation and any commercial terms in the actual quote.

Tianjin company and order context.

The official China contact directory names SEW-传动设备（天津）有限公司 at 46 Seventh Avenue and three Tianjin sales contacts at 78 Thirteenth Avenue. Use the relevant contact to confirm the contracting entity, supply scope and manufacturing/assembly location for the configured order.

Tianjin Economic-Technological Development Area's February 2025 announcement names that transmission-equipment company's production-line upgrade among the first industrial equipment-renewal candidate projects. It is a dated local project reference, not a statement that every global SEW variant is produced at that site or that a particular delivery has been inspected.

The RX/R/RM data above describe the manufacturer's published product portfolio. Keep the regional supplier identity, selected product configuration and actual delivery documents connected in procurement records.

Send an application or an existing drive identity.

Ask for the specific configured solution and documents.

Prepare sourcing request

New machine or replacement; quantity and relevant serial/order identity.
Required output speed, torque and start/reverse/load time history.
Conveyor or agitator geometry and output force/moment diagram.
RX/R/RM route, motor/adapter, brake/feedback and control scope.
Mounting position, environment, lubrication and service access.
Approved CAD/drawing and configuration revision.
Supplying entity, manufacture/assembly location and inspection scope.
Operating instructions, spares and the agreed service route.
