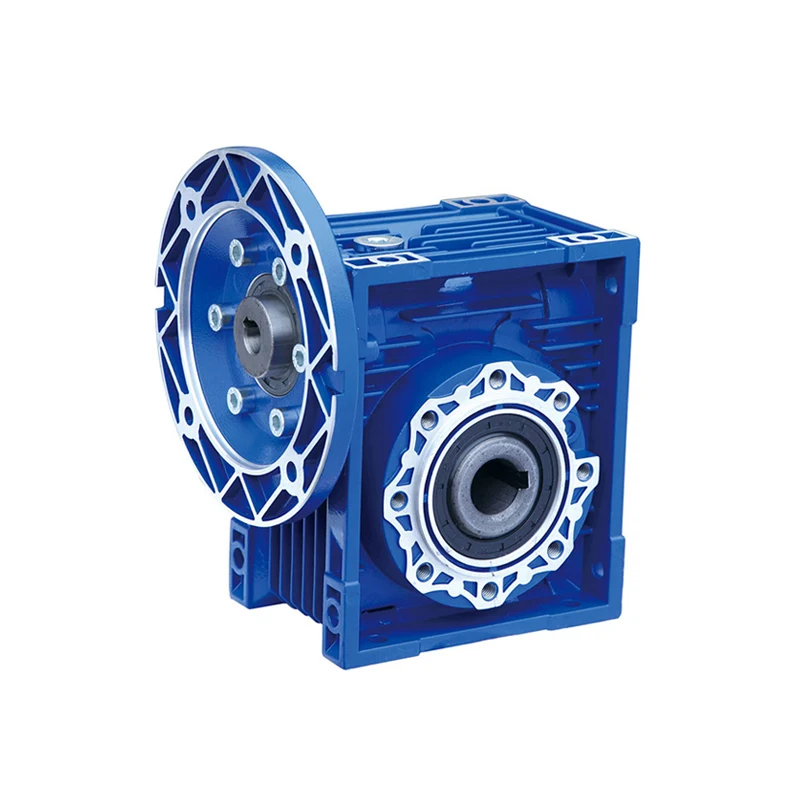

Jiacheng / Chen Chao NMRV Worm Gear Reducers

MANUFACTURER DOCUMENTATION

Overview

Jiacheng’s NMRV family is offered as single-stage worm units and combined two-stage assemblies. The manufacturer separates a single-stage ratio range of 7.5–100 from a two-stage range of 100–5,000. Input power is specified as 0.06–15 kW for single-stage units; the two torque envelopes are listed separately below. The source describes an aluminum-alloy construction and multiple installation positions. Check the material and dimensions of the selected frame, as well as oil quantity and thermal duty for the actual orientation. A combined-stage reduction ratio must be evaluated with its own efficiency and permissible output load.

Read original manufacturer specification ↗

Published series specifications

Series ranges describe the product family. They are not interchangeable operating points.

Frames: 025–150
Single-stage ratios: 7.5–100
Two-stage ratios: 100–5,000
Single-stage input power: 0.06–15 kW
Single-stage output torque: 2.6–3,057 Nm
Two-stage output torque: 25–3,057 Nm
Housing description: Aluminum alloy; confirm selected frame

Design & options

Single or combined worm stages
Multiple mounting orientations
Compact square housing

Applications to discuss

Textile machinery
Food packaging
Environmental equipment

Model configuration table

The source page provides a series overview rather than a complete model/ratio rating table. Use the manufacturer link above for selection drawings and confirm the precise operating point before ordering.

Before you specify this gearbox

Check efficiency, heat dissipation, duty and back-driving behavior for the particular model. Do not assume that every worm gearbox is self-locking.

Confirm continuous, peak and emergency-stop load limits separately.
Match the motor flange, shaft, mounting orientation and lubrication requirements.
Request the current drawing revision and selection calculation from the manufacturer.
