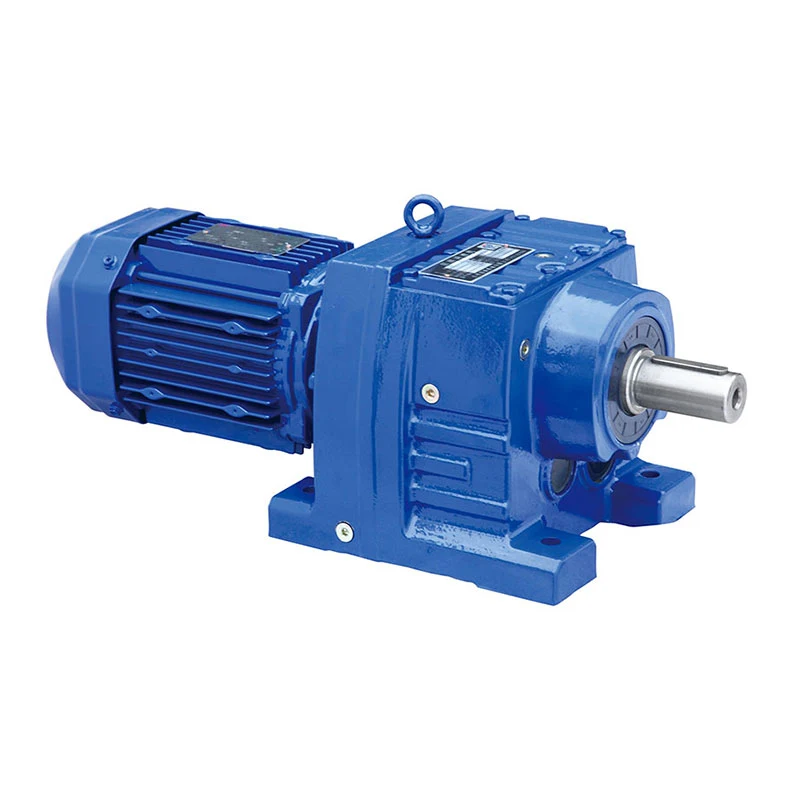

JCR Helical Geared Motors

MANUFACTURER DOCUMENTATION

Overview

JCR is Jiacheng’s modular helical geared-motor family. The source lists models 37–177, ratios from 3.77 to 267.77 and an input-power envelope from 0.12 to 250 kW. Its published output-torque range spans 3.5–56,845 Nm across the family. The manufacturer describes an integral cast housing and use in frequent starting or reversing duties; an application still needs a service-factor and thermal check. Provide the load cycle, motor requirements and mounting arrangement so the supplier can confirm a complete combination. Do not combine the largest torque and highest ratio into an assumed standard unit.

Read original manufacturer specification ↗

Save

Published series specifications

Series ranges describe the product family. They are not interchangeable operating points.

Model envelope

37–177

Ratio envelope

3.77–267.77

Input-power envelope

0.12–250 kW

Output-torque envelope

3.5–56,845 Nm

Housing

Integral casting

Model configuration table

The source page provides a series overview rather than a complete model/ratio rating table. Use the manufacturer link above for selection drawings and confirm the precise operating point before ordering.

Before you specify this gearbox

Helical gearboxes are used in a broad range of industrial drives. Mounting position, service factor, thermal capacity and lubrication are part of selection, not just the nameplate power.

• Confirm continuous, peak and emergency-stop load limits separately.
• Match the motor flange, shaft, mounting orientation and lubrication requirements.
• Request the current drawing revision and selection calculation from the manufacturer.
