Specify the machine duty before selecting the reducer.

Shanxi Pingyao Reducer supplies mining, lifting, modular industrial and planetary transmission systems. Its catalogue separates QJ/QY crane reducers, YN permanent-magnet semi-direct drives and modular replacement gearboxes. A heavy-duty procurement brief needs the load cycle, shaft arrangement and acceptance test, not a collection of unrelated catalogue maxima.

Find the relevant series Official XINKAI website ↗

Crane reduction and semi-direct drive are different packages.

The official product pages identify these two families separately. Their published tables give selection boundaries but do not specify continuous or peak output torque for a particular configuration. Request the operating-point calculation for the chosen drive rather than estimating its rating from the company’s broad capabilities.

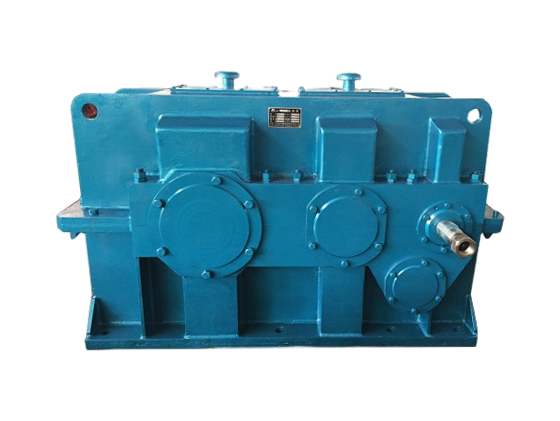

QJ / QY · crane reducers

The supplier lists parallel-shaft structures and distinguishes stage count and ratio by family. Give the lifting duty and installation layout before selecting the frame. Brake and holding-system requirements remain separate from the gearbox ratio.

Official QJ / QY details →

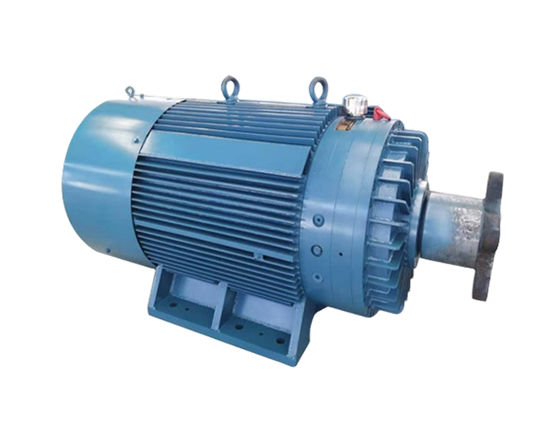

YN · permanent-magnet semi-direct drive

The page places YN in its planetary transmission catalogue and lists ten specifications across designations 280–800. This is a motor/transmission package enquiry: confirm the motor control, cooling and mechanical output interface together.

Official YN details →

Family designation	Published ratio	Published additional information	Selection boundary
QJ140–1000	10–200	2 / 3 stages; parallel arrangement; 14 specifications	No matched input-speed/torque row on this page.
QY160–800	16–400	3 / 4 stages; parallel arrangement; 15 specifications	Duty classification and brake arrangement need project-specific confirmation.
YN280–800	5 / 6.3 / 7.1	37–1,250 kW; 10 specifications	Family power range, not a claim that every designation provides 1,250 kW at every listed ratio.

The crane page states welded Q235-B housing, carburized/quench-hardened low-carbon alloy-steel gears and ZWZ bearings. It cites JB/T 8905 without an edition and describes gear accuracy as grade 6 without the full GB/T document number. Specify the applicable edition, measurement method and delivered material records in the purchase order; the website wording alone does not define the complete acceptance requirement.

A replacement enquiry starts with interfaces, not “equivalent.”

The modular replacement page lists these three designation groups. Parallel/perpendicular arrangements and several output connection options are part of the supplier’s modular description. They do not establish drop-in interchangeability with an imported gearbox.

Designation group	Ratio range	Stages listed	Specifications listed
MC02–09	7.1–112	2 / 3	8
M10–90	6.3–1,800	2 / 3 / 4 / 5	9
ML100–140	5.6–1,250	2 / 3 / 4 / 5	5

For this modular family, the manufacturer describes low-alloy carburizing steel, carburizing/quenching, grade-6 gearing, German-brand or ZWZ bearings, and HT300 cast iron or Q235 welded housings. These are alternative construction descriptions. Confirm the offered bill of materials and housing design for the exact replacement; do not assume that all variants use the same casting or bearing make.

Send the original nameplate and dimensional drawing, foot bolt centres, shaft heights, diameters, coupling details and rotation direction. Add the operating torque/speed and load at the driven shaft. The output-bearing load, cooling system, lubrication position and space for maintenance can prevent a replacement even when the ratio is nominally correct.

Read the official modular replacement table →

Turn manufacturing capability into an agreed acceptance plan.

Large-gear machining

The company describes CNC gear grinding, boring/milling, grinding and gear shaping, with heat-treatment facilities. Its large-gear machining claims concern production equipment, not the permissible diameter or load of every gearbox. Ask which operations and inspections apply to the quoted series.

Closed-loop performance testing

The company says its self-developed megawatt-class test bench measures input power, output torque, oil-temperature rise, efficiency and noise. Define the test load/speed, stabilisation time, lubricant, calibrated instruments and report format if a witnessed acceptance test is required. A listed bench does not mean every dispatched unit underwent your requested test.

Mining and safety scope

The official catalogue separately lists JS mining/conveyor reducers. An industrial modular gearbox and a mine-approved unit are different purchase scopes. For regulated use, obtain the certificate covering the exact model, holder and intended installation, alongside the site’s environmental and cooling requirements.

Other published ranges include GS high-speed gearboxes, N/P and NGW planetary reducers, cylindrical and bevel-cylindrical hardened-gear units, pumping-unit reducers and motorized drums. Choose the relevant application family before requesting performance. The company-wide maximum speed and power figures are not substituted for an absent model rating here.

Independent record: standard drafting, with a precise scope.

The National Public Service Platform for Standards lists 山西省平遥减速器有限责任公司 among the drafting organisations for JB/T 15301-2025, Parallel Shaft Gear Reducers, implemented on 1 July 2026. This independently corroborates the legal company name and that drafting role. It does not certify the QJ, YN or modular product shown here.

For a contract, use the Chinese legal name and confirm the invoicing entity, factory collection address and export-service arrangements. The historical factory name and XINKAI brand should not replace the legal seller’s name on a purchase order.

A useful heavy-drive enquiry

Include the machine drawing and load history. For a new drive, state the required function; for replacement, document the existing assembly before comparing frames.

Prepare sourcing request

Save this manufacturer to include it in your enquiry.

Choose QJ/QY, YN, modular or another specific catalogue family; give ratio and input/output arrangement.
State running torque, speed, peak duration, reversals, starts/stops and hours of operation.
Supply mounting, shaft/coupling drawings, external loads and cooling/lubrication environment.
For YN, add motor supply, controller interface, cooling and complete-assembly envelope.
Agree material records, exact standards/editions, performance-test conditions, delivery and spare parts.

Sources & review

Official series tables were transcribed by family. Equipment and material descriptions remain supplier statements. No torque, test result or certification was inferred from broad company claims.

Reviewed 9 October 2026.

Official company introduction ↗Legal name, brand/history, location and described manufacturing/test facilities.
QY / QJ crane reducer ↗Original product image, designation/ratio/stage table and construction description.
YN semi-direct drive ↗Original image and power/ratio/designation table.
Modular replacement reducers ↗MC, M and ML ratio/stage rows and material alternatives.
National standards platform · JB/T 15301-2025 ↗Independent company drafting role; distinct from product approval.
