Specify the whole drive package.

Jiangsu Huanou publishes industrial helical and bevel-helical gearboxes, wind-energy planetary drives and high-speed gear units. Its service offer extends to installation guidance, maintenance training, spares and upgrading older equipment. Start with the machine and the supply boundary.

Prepare a project brief Official products ↗

Three different projects. Three different specifications.

Use the application and shaft layout to choose the official documentation. The wind-drive and high-speed pages answer different questions from the standard industrial range.

Industrial

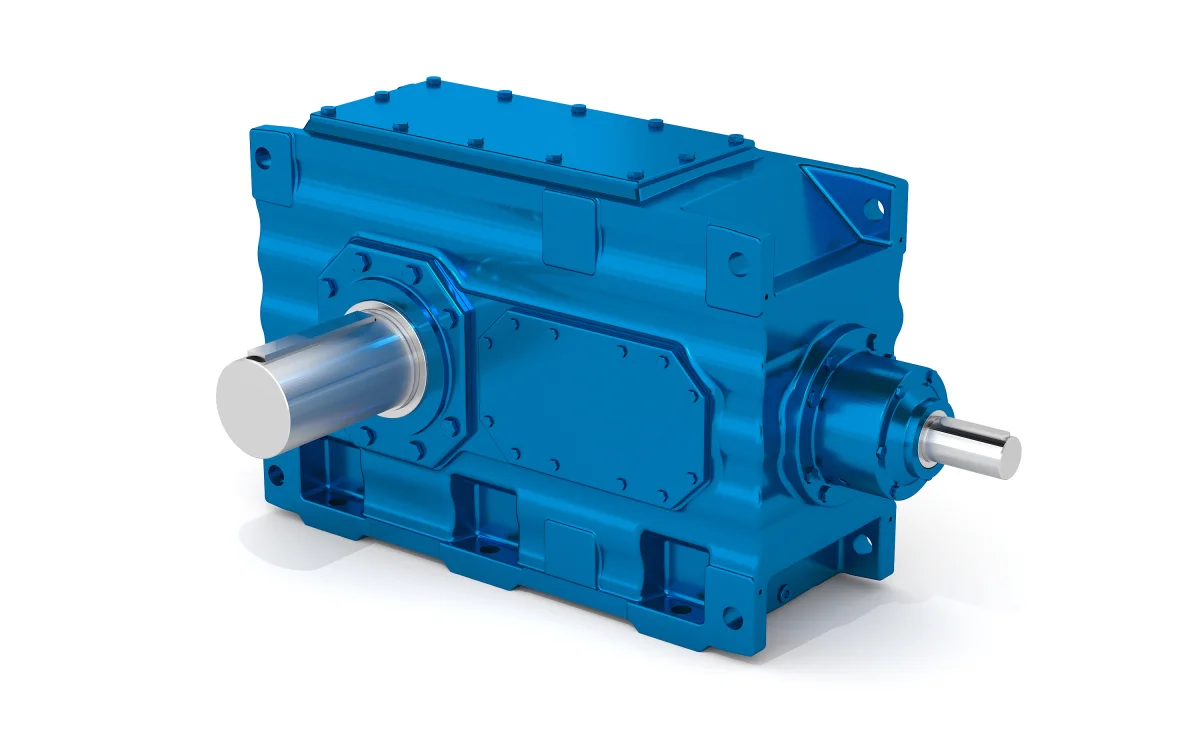

Helical or bevel-helical drive

The standard range uses modular construction and includes both shaft layouts. The page discusses sealing, heat dissipation, lubrication and installation interchangeability.

What a replacement drawing needs →

Source path

Conveying and general machine power transmission.

Official industrial range ↗

Wind drive

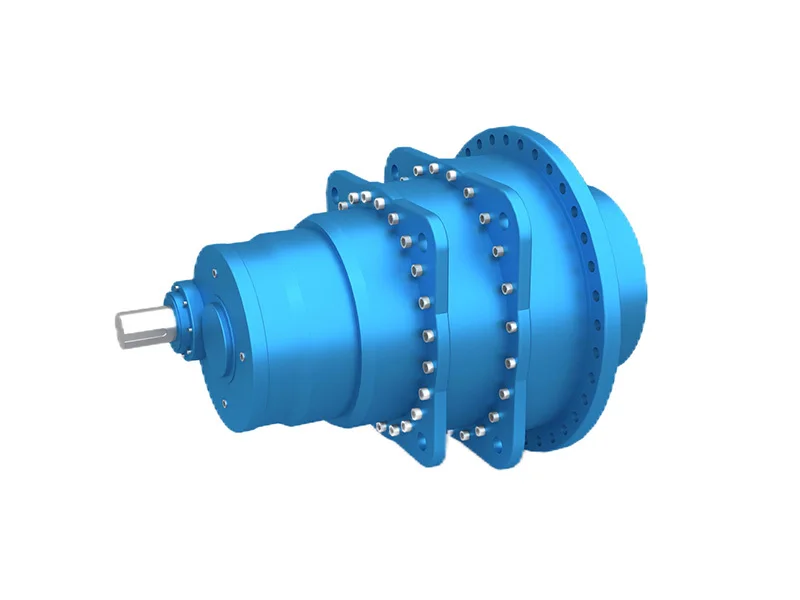

Yaw and pitch planetary gearbox

The planetary page focuses on wind-energy yaw/pitch drives, with flange input and output connections described as an external gear or internal/external spline.

Source path

Send the turbine interface, duty cycle and output connection.

Official planetary range ↗

High-speed

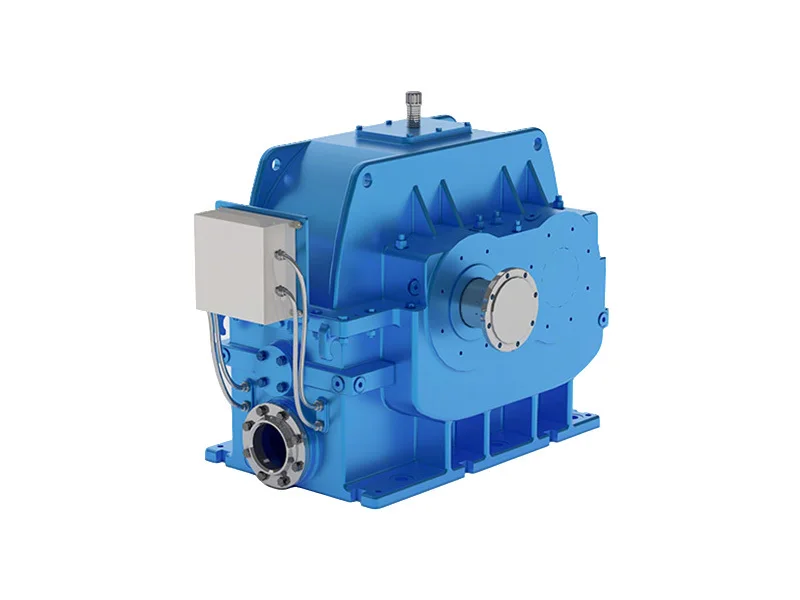

Chemical and energy transmission

The high-speed page discusses gear optimization, bearing pads and non-contact sealing. Its design-reference list includes API, ISO, AGMA and Chinese standards.

Source path

Agree the project specification and required standard editions.

Official high-speed range ↗

Standard industrial gearboxManufacturer's range ↗

Wind-energy planetary driveManufacturer's range ↗

High-speed gearboxManufacturer's range ↗

For an existing machine

“Interchangeable” becomes useful on a drawing.

The industrial range describes compatibility with mainstream installation dimensions. For an actual replacement, compare the selected units and surrounding equipment before committing to fabrication.

Foundation and shaft arrangement

Supply the existing center height, bolt pattern, shaft centerlines and motor position. Identify parallel or right-angle transmission and the required direction of rotation. Include foundation condition and lifting access for the replacement.

Connection and external loads

Dimension shaft diameters, fits, keys/splines, engagement lengths and coupling hubs. Show the pulley, gear or driven-shaft location so the supplier can check external forces and moments rather than only torque.

Heat and lubrication

List input power, speed, operating hours, ambient temperature and nearby heat sources. Identify the required lubrication circuit, cooling-water or air provisions, oil grade and monitoring instruments.

Shutdown and maintenance access

Mark space for oil filling/draining, filters, inspection covers and coupling removal. Agree whether the quote includes baseplates, guards, instrumentation, commissioning assistance and an initial spares package.

Turn the published construction into an acceptance schedule.

The planetary page describes heat-treated alloy-steel gearing: carburized/hardened external gears, tempered and nitrided internal rings, and ductile-iron or quality-steel housings. These are descriptions of the published range; specify the selected unit's materials and records.

Project item	What to agree in the order	Useful document
Gear material and treatment	Grade, treatment route and acceptance criteria for the selected gears; do not prescribe one hardness value for every component.	Material traceability, treatment specification and agreed inspection records.
Housing and output support	Chosen material, output connection and the actual combined load case.	Approved assembly drawing and supplier load/life calculation.
Design references	The project-specific standard, edition, exceptions and calculation deliverables.	Compliance/deviation schedule tied to the order, rather than a general catalog list.
Performance acceptance	Operating point, test load, temperature, instrumentation and agreed limits.	Unit-linked test procedure and result record.

The high-speed page's headline capacity and efficiency refer to the range, without one selected operating point. Obtain the proposal's power, speed, thermal basis and test conditions before using them for a machine design. A listed design standard is not a certification badge.

Write the service boundary before the shutdown.

The official service page includes development, manufacture, installation/commissioning guidance, maintenance training, spare parts and upgrades to older products. It also says input/output connection dimensions can be customized. These are useful starting points for a retrofit or a non-standard drive enquiry.

Make the commercial scope precise: who measures the old machine, who approves the mounting and coupling drawings, who supplies the oil system and who performs alignment on site. Define the permitted shutdown window, acceptance responsibility and the documents needed for future maintenance.

For overseas equipment, agree remote-diagnosis information, on-site support arrangements and the parts list before installation. Record serial identifiers and the approved as-built drawings with the machine. A maintenance plan is useful when it tells the operator what can be inspected and replaced within the available access space.

Send the machine duty and the supply boundary.

A Huanou project enquiry should identify the industrial, wind-drive or high-speed route and the equipment surrounding it.

Prepare sourcing request

Save Huanou to include it in your request.

Driven machine, new installation or replacement, process loads and operating/shutdown schedule.
Input power/speed, output speed/ratio, working and transient torque, ambient and thermal conditions.
Shaft arrangement, foundation, coupling/flange/spline drawings and external load positions.
For wind drives: yaw or pitch function, turbine interfaces and the full motion/load cycle.
Lubrication/cooling, monitoring, material requirements, project standards and agreed inspection/tests.
Quantity and destination; baseplates, auxiliaries, commissioning, training, spares and maintenance scope.
